HA PRO MAX 51.2V 100Ah
Wall-mounted, slim 145mm depth — saves floor space
Up to 6000 cycles long-life LiFePO4 cells
100A continuous charge/discharge, 150A pulse (15s)
CAN / RS485 inverter communication
LED state-of-charge strip + optional LCD display
Full protection: overcharge, overdischarge, overcurrent, short-circuit, over-temperature
UN38.3 & MSDS certified for air and sea freight

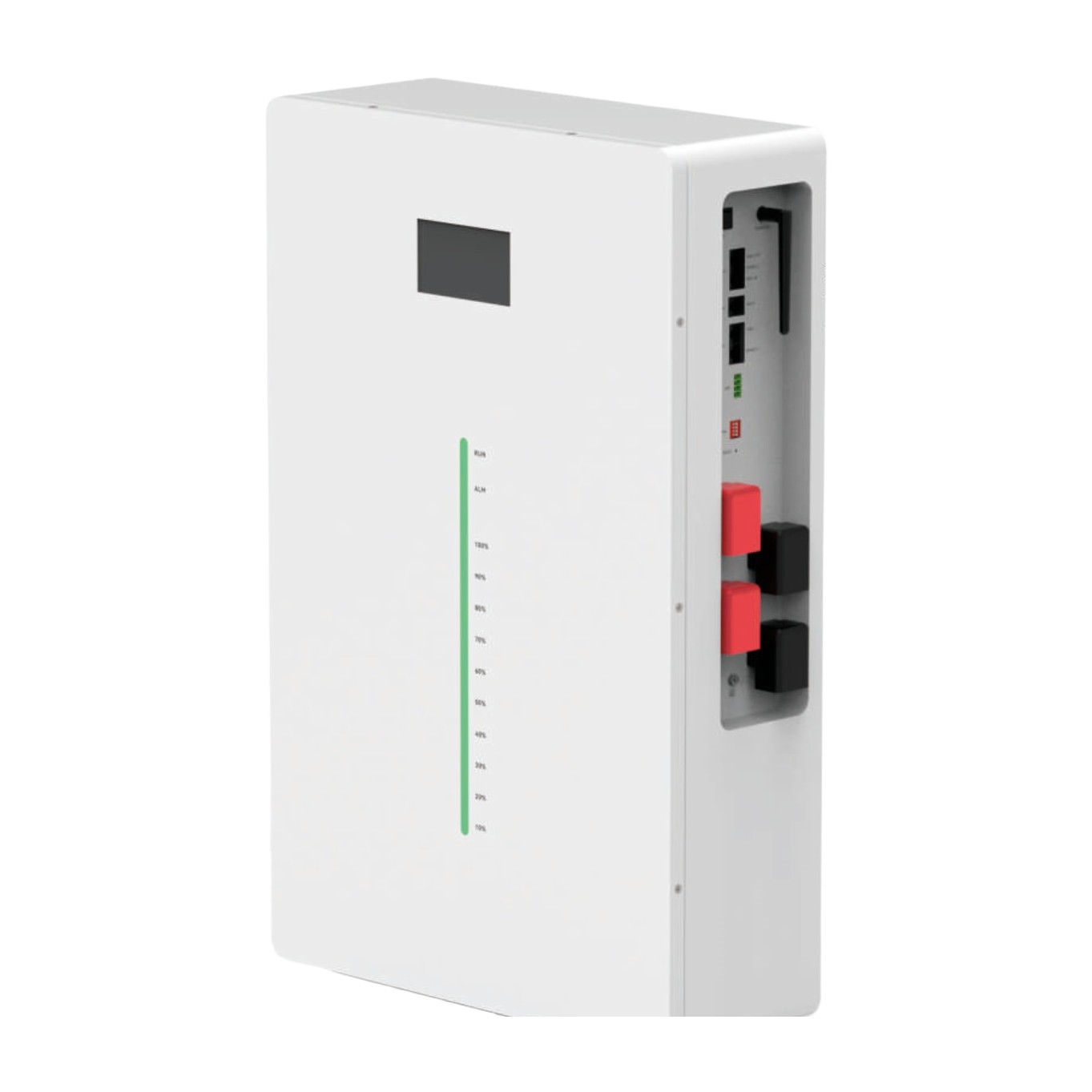

The HA PRO MAX wall-mounted lithium battery packs 5.12kWh of usable energy into a slim 640×410×145mm enclosure that mounts flush against any wall. The built-in LED state-of-charge strip and optional LCD display make battery status readable at a glance, while the MSW-grade BMS handles overcharge, overdischarge, overcurrent, short-circuit and over-temperature protection automatically — true unattended operation.
With a maximum continuous charge and discharge current of 100A (150A pulse), the unit pairs directly with most hybrid inverters on the market via CAN or RS485 communication. Cells are rated for up to 6000 cycles, and the battery carries UN38.3 and MSDS certification for safe global shipping.
The LED strip edition adds a front ambient light band that doubles as a state-of-charge indicator — a clean, modern look for living rooms, offices and shops where the battery is installed indoors.
Device-level EMS, device condition monitoring, data acquisition and analysis, energy monitoring and measurement, safety and protection strategies, battery energy optimization, remote control , and OTA.
